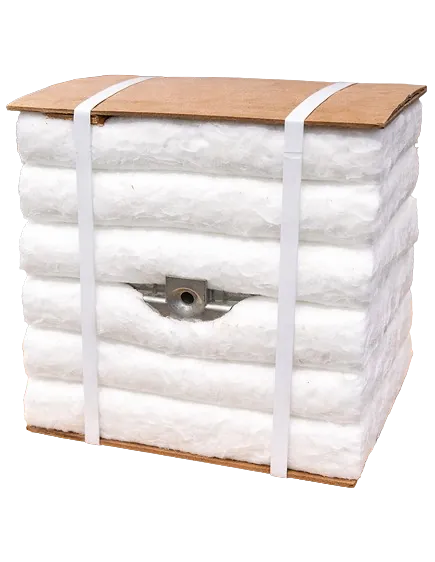

Module is made from “DMat Ceramic Fiber” folded and compressed as per the required sizes and densities.
RT Grade Classification Temperature: 1260°C
HTZ Grade Classification Temperature: 1425°C
Sliding type module supplied with D-Anc anchoring system. Designed for easy positioning in any direction and mainly used to create square patterns commonly required for parquet construction.
Commonly used in electrical heaters and furnaces. Allows easy replacement of damaged modules without disturbing adjacent modules.
D-Anc and D-Loc module anchors are designed for low stress, allowing use at higher temperatures compared to conventional module anchors.
Veneer modules can be applied over refractory castable, monolithic plastics, high-temperature IFB and ceramic fiber modules. Modules are available in 12" × 12" ceramic fiber insulation thicknesses.
They can be installed over existing refractory surfaces to improve furnace efficiency by replacing serviceable refractory lining.
Typical applications include:
| Property | 1260 Grade | 1425 Grade |
|---|---|---|
| Classification Temperature (°C) | 1260 | 1425 |
| Color | White | |
| Fiber Diameter (µm) | 2.6 ~ 3.4 | |
| Non Fibrous Content by wt. (%) | 30 Max. | |
| Theoretical Density (kg/m³) | 128, 160, 192 | |
| Chemical Composition (%) | Al₂O₃ : 42 - 47 | Al₂O₃ : 30 - 34 |
| SiO₂ : 53 - 58 | SiO₂ : 50 - 55 | |
| ZrO₂ : — | ZrO₂ : 13 - 18 | |
| Other : Traces | Other : Traces | |
High-purity ceramic fibres for consistent thermal performance
Withstands extreme temperatures up to 1260°C / 1430°C
Low thermal conductivity for improved energy efficiency
Strict quality control at every production stage
Available in standard and customized specifications
Discover how our ceramic fibre solutions perform in real-world, high-temperature industrial environments.
Industrial furnaces and kilns
Boilers and heaters
Refractory backup insulation
Expansion joints and seals
Power plants and refineries
Our engineers are ready to assist. Share your application details and we’ll recommend the ideal ceramic fibre solution.
Our ceramic fibre blankets are available in two temperature ratings: 1260°C and 1425°C, in densities of 64, 96, and 128 Kg/m³. We can advise on the right grade for your specific application.
Yes. All DGN Faser ceramic fibre products are manufactured to meet ASTM standards, specifications, and criteria in every aspect. We are also ISO 9001:2015 certified, ensuring consistent quality across every production batch.
Our production facility has an annual capacity of 3,600 MT, enabling us to handle both small and large-volume orders reliably and on schedule.
Yes. We manufacture export-grade products and have supplied to customers in the USA and UAE. We welcome enquiries from international buyers and distributors.
Yes. Our machinery allows us to produce blankets, boards, modules, and paper in custom dimensions and densities to suit your specific technical requirements. Please contact our technical team with your specifications.
We operate a rigorous multi-stage quality control system backed by an advanced in-house laboratory. Key checks include fibre density, dimensional accuracy, weight, and temperature performance — all verified before dispatch. We are ISO 9001:2015 certified.
Our ceramic fibre products are manufactured using Alumina, Silica Sand, and Zirconium — sourced from quality-approved domestic and international suppliers, including NALCO (India), Hindalco (India), and H.C. Starck (USA).
You can reach us by phone at 02752-283383 / 283683, by mobile at +91 94280 02611 or +91 94290 51751, or by email at [email protected]. Please share your product requirements, quantity, and delivery location and our team will respond promptly.
Yes. DGN Faser is ISO 14001:2015 Environmental Management System certified. We are committed to eco-friendly operations, responsible waste recycling, and maintaining a zero-effluent campus.
Our manufacturing plant is located at R.S. No. 565, Near Dedadra Patiya, Surendranagar–Lakhtar Road, At/Post: Dedadra, Tal: Wadhwan, Surendranagar – 363030, Gujarat, India.
